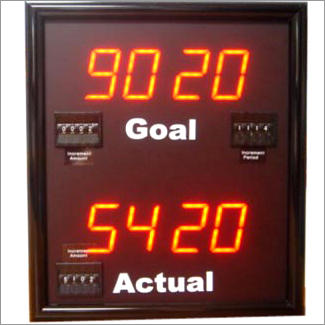

Production Monitoring Display System

Production Monitoring Display System
Production Monitoring Display System
Product Code : 05
Product Description

In our extensive gamut of products, we bring forth for our clients Production Monitoring Display System. Offered system is used in various industries to monitor the production achieved in the factory. Manufactured by our skilled professionals using premium quality components, this system offers efficient and fast results. Furthermore, proposed system is rigorously tested on defined parameters to ensure its flawless nature. Available in several designs and other specifications, provided Production Monitoring Display System can be purchased from us at cost-effective price.

Features:

  • 1.8½, 2.5½, 4½, 12½, 18½ And 22½ Digit Sizes

  • FOUR DIGIT OR EIGHT DIGIT DISPLAY

  • RESET AND preset Count

  • Any number of displays may be synchronized together to display same time or count

  • Optional electronic alert horn or relay output when RESET or PRESET reached

  • “Goal� can be static or automatically increment throughout the day

  • Connect to your PLC or Sensors

  • Reliable LED Display

  • High Readability

  • Gang able: Multiple Displays can show the same count

  • Environment: Temperature 0 Deg Cent to 50 Deg Cent, Humidity 0% to 95% non-Condensing

  • Require Power Input 220 V +/- 10 %, 50 Hz

  • Control Technology: 8 Bit Micro - Controller

  • Interface Communication: RS 485/ RS232

Details:

DAN manufactures LED based production monitoring display systems for industries to monitor the production achieved in the factory. These systems are available in various formats like daily, weekly and monthly monitoring basis. The goals (Targets) can be adjusted through push button switch or through PC. The actual achieved counter can be configured to auto – increment or use an external sensor. These can easily be seen across the room. These counters feature highly accurate count. Real time may be displayed on these production Display boards, when not using the counter function. Two basic types of displays are available: high brightness bar segment and ultra – bright discrete LED. High Brightness displays are available in red while ultra – bright displays are available in red, blue & green. The standard high brightness bar segment displays are ideal for indoor applications but they could not be seen in direct or highly reflected sunlight. However, ultra – bright displays are viewable in both indoors and outdoors, even in direct sunlight. The brightness of display board can be controlled digitally as per cabinet conditions.
